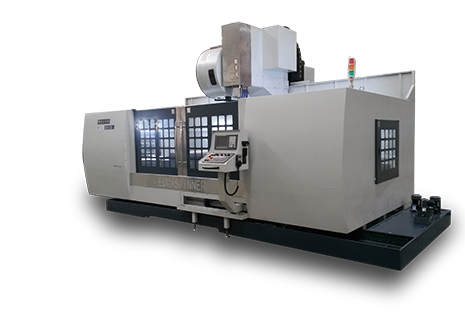

Superb static and dynamic stability full EV series with marble mineral castings body.Standard with linear guideway,specified model with box guideway.Over 20 years assembling expierence.C0/C1 class ball screw for ultra high accuracy production.X axis travel range from 810mm to 3200mm(colum travel).Spindle speed from 6000rpm to 15000 rpm.Fanuc or Siemens system for choice.
EUMASPINNER EV line of Vertical Machining Centers are made of HT300 castings with an upgraded tensile strength and dampening capacity. They are heat treated to eliminate internal stresses and resist creep or fatigue under various operating conditions and thereby maintain accuracy even under prolonged cutting of even the toughest production part materials and tolerances.
The exceptionally heavy ribbing structure is geometrically symmetrical to balance the thermal and dynamic stresses ensuring the highest level of static and dynamic stability needed for constant precision cutting. This structure provides the optimal rigidity and torsional stiffness for high performance manufacturing.

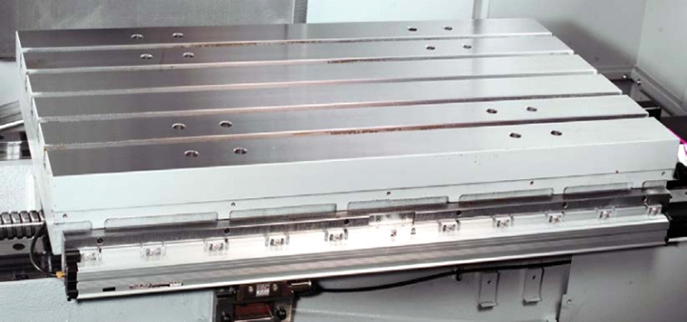

The extra wide linear guide span minimizes the bending deflection of the structure and provides a massive monolith base and support for heavy loads while maintaining a high level of accuracy. This also provides a stable cutting platform.
Marble mineral casting bed with high rigidity and stability.
Structures features an "A" shaped column which the bottom with a large span and a wide base.

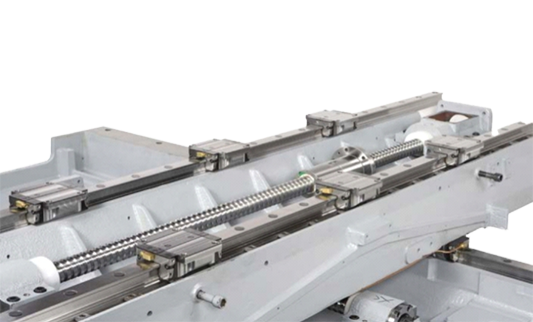

X/Y/Z axes equipped with THK high-precision linear roller guideways
Rapid feed speed up to 48/min.
C3 class customized high accuracy ball screw as standard and Taiwan original PMI/HIWIN ultra high accuracy C0 ball screws for optional.
Repeat positioning accuracy on 1000mm length full travel reach to 0.003mm.

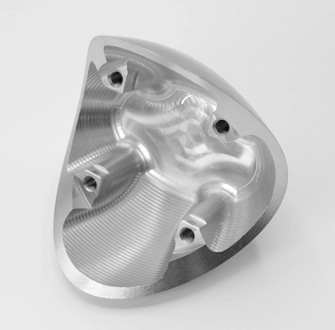

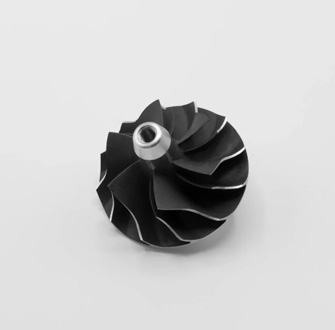

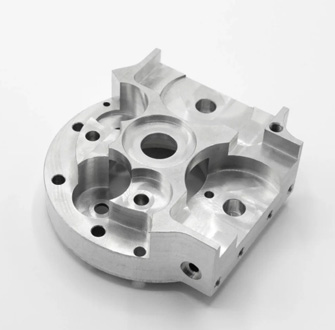

4-axis rotary table for mutil side processing customized.
|
Name |
Unit |

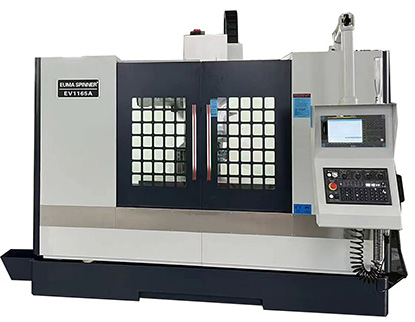

EV-855A |
EV-1055A |
EV-1165A |
EV-1370A |
EV-1475B | EV-1580B | EV-1680B | EV-1890B |
|
X-axis travel |
mm |
810 |
1000 |
1100 |
1300 |
1400 | 1500 | 1600 | 1800 |
|
Y-axis travel |
mm |
550 |
550 |
650 |
720 |
750 | 800 | 800 | 900 |
|
Z-axis travel |
mm |
560 |
580 |
650 |
720 |
750 | 700 | 700 | 800 |
|
Distance (spindle nose and table) |
mm |
130-690 |
120-700 |
120-770 |
130-850 |
150-900 | 155-855 | 160-860 | 105-905 |
|
Distance (spindle and column) |
mm |
595 |
595 |
673 |
735 |
875 | 855 | 885 | 992 |
|
Worktable size |
mm |
1000x550 |
1100x550 |
1300x650 |
1400x700 |
1500x700 | 1600x800 | 1700x800 | 2000x900 |
|
Max.Load on worktable |
kg |
650 |
650 |
900 |
1000 |
1000 | 1200 | 1500 | 1800 |
|
T-slot size (width*distance*number) |
mm |
18x90x5 |
18x90x5 |
18x120x5 |
18x90x5 |
18x100x7 | 22x110x7 | 22x110x7 | 22x125x7 |
|
Spindle taper |
type |
ISO 40 |
ISO 40 |
ISO 40 |
ISO 40 |
ISO 50 | ISO 50 | ISO 50 | ISO 50 |
|
Feed rate (X/Y/Z) |
m/min |
48/48/32 |
48/48/32 |
36/36/24 |
36/24/24 |
36/24/24 | 20/20/20 | 20/20/20 | 20/20/20 |
|
Cutting feed rate (X/Y/Z) |
mm/min |
20000 |
20000 |
15000 |
15000 |
10000 | 10000 | 10000 | 10000 |
|
Ball screw (X/Y/Z) |
mm |
Φ40/16 |
Φ40/16 |
Φ40/12 |
Φ40/12 |
Φ40/12 | Φ50/10 | Φ50/10 | Φ50/10 |
|
Linear guideway |
mm |
35/45/45 |
35/45/45 |
45/45/45 |
45/45/45 |
45/55*4/45 | 55/45*4/55 | 55/45*4/55 | 55/55*4/55 |
|
Tool shank type |
type |
BT40 |
BT40 |
BT40 |
BT40 |
BT50 | BT50 | BT50 | BT50 |
|
Tool magazine capacity |
pcs |
24 |
24 |
24 |
24 |
24 | 24 | 24 | 24 |
|
Max. tool dia.(adjacent/no adjacent) |
mm |
Φ80/Φ150 |
Φ80/Φ150 |
Φ80/Φ150 |
Φ80/Φ150 |
Φ110/Φ220 | Φ110/Φ220 | Φ110/Φ220 | Φ110/Φ220 |
|
Max. tool length |
mm |
250 |
250 |
250 |
250 |
350 | 350 | 350 | 350 |
|
Max. tool weight |
kg |
8 |
8 |
8 |
8 |
15 | 15 | 15 | 15 |
|
Tool change method |
type |
arm type |
arm type |
arm type |
arm type |
arm type | arm type | arm type | arm type |
|
Tool change time (tool to tool) |
sec. |
2 |
2 |
2 |
2 |
3 | 3 | 3 | 3 |
|
Main motor speed |
rpm |
10000(12000) |
10000(12000) |
10000(12000) |
8000(6000) |
8000(6000) | 8000(6000) | 8000(6000) | 8000(6000) |
|
Main motor power |
kw |
11/18 (11/22) |
11/18 (11/22) |
11/18 (11/22) |
22/33 (28/42) |
22/33 (28/42) | 22/33 (28/42) | 22/33 (28/42) | 22/33 (28/42) |
|
Main motor torque |
Nm |
52.5/118 (70/159) |
52.5/118 (70/159) |
52.5/118 (70/159) |
143/236 (176/260) |
143/236(176/260) | 143/236(176/260) | 143/236(176/260) | 143/236(176/260) |
|
X/Y/Z axis feeding motor power |
kw |
3/3/3 |
3/3/3 |
3/3/3 |
3.8/4.9/4.9 |
3.8/4.9/4.9 | 3.8/4.9/4.9 | 3.8/4.9/4.9 | 3.8/4.9/4.9 |
|
X/Y/Z axis feeding motor torque |
Nm |
20/20/27 |
20/20/27 |
20/20/36 |
18/27/27 |
18/27/27 | 18/27/27 | 18/27/27 | 18/27/27 |
|
Turning coolant motor power |
kw |
1.0+1.0 |
1.0+1.0 |
1.0+1.0 |
1.0+1.0 |
1.0+1.0 | 1.0+1.0 | 1.0+1.0 | 1.0+1.0 |
|
Required air pressure |
kg/cm2 |
6.5 |
6.5 |
6.5 |
6.5 |
6.5 | 6.5 | 6.5 | 6.5 |
|
Required power |
kva |
25 |
25 |
30 |
30 |
35 | 35 | 35 | 35 |
|
X/Y/Z-axis positioning accuracy |
mm |
0.008 (0.005) |
0.008 (0.005) |
0.008 (0.005) |
0.008 (0.006) |
0.008 (0.006) | 0.009 (0.007) | 0.009 (0.007) | 0.009 (0.007) |
|
X/Y/Z-axis repositioning accuracy |
mm |
0.005 (0.003) |
0.005 (0.003) |
0.005 (0.003) |
0.005 (0.004) |
0.005 (0.004) | 0.006 (0.004) | 0.006 (0.005) | 0.006 (0.005) |
|
Machine weight |
kg |
5200 |
5500 |
6000 |
7000 |
7500 | 8000 | 9500 | 10000 |
|
Machine size (L x W x H) |
mm |
2700 x2400x2850 |
3000x2400x2850 |
3100x2600x3050 |
3400x2900x3300 |
3700x2900x3300 | 4000x3300x3550 | 4100x3300x3550 | 4300x3400x3550 |
|
CNC control |
- |
FANUC 0IMF PLUS |
FANUC 0IMF PLUS |
FANUC 0IMF PLUS |
SIEMENS 828D |
SIEMENS 828D | SIEMENS 828D | SIEMENS 828D | SIEMENS 828D |
Fully enclosed cover
Transformer (380V→220V)
Arm type tool changer with 24 tool magazine
Manual pulse generator

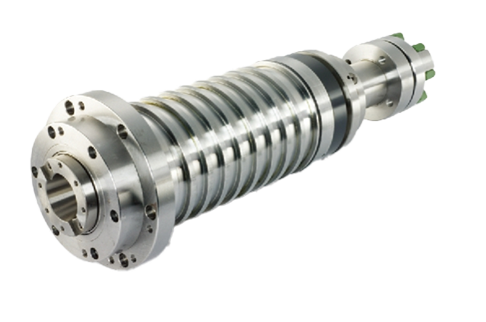

Direct drive spindle
RS232C interface/USB/Ethernet
Spindle oil cooling device
Working lights
Spindle and cutting air blowing
Pause and work completion light
X/Y/Z-axis roller guideway P-class
Fault indicator light
X/Y/Z-axis ball screw C-class
Automatic power off system M30
Cutting coolant system
Adjustment level bolts and support blocks
Automatic centralized lubrication system
Basic tool box
Air gun+coolant gun
Chain-plate automatic chip conveyor+trolley
Cabinet air conditioner
FANUC Oi-MF CNC system with 10.4” color screen
Oil-water separator
Tool magazine 32 position
Tool setting device Renishaw TS27R/NC4
Spindle:belt type/ direct drive type/ electrical type
Post-processing
Spindle speed:6000/8000/10000/12000/15000rpm
Automatic door with cylinder
Spindle taper:HSK/BT/BBT
Spindle and ball screw thermal deformation compensation
Spindle inner coolant 20bar/30bar/50bar/70bar
Rotating window
Italian BF gear reducer
C0 class ball screw for Ultra precision production
4-axis rotary table
Structure optimization, better castings, increase weight
Oil mist collector
Spindle surround spray
XYZ axis Heidenhain grating scale
Chip-conveyor(Scraper type or screw type)
Workpiece measuring device Renishaw
SIEMENS 828D
OMP40-2/RMP40
