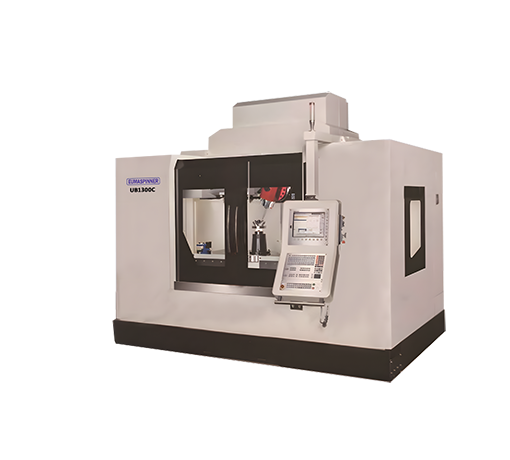

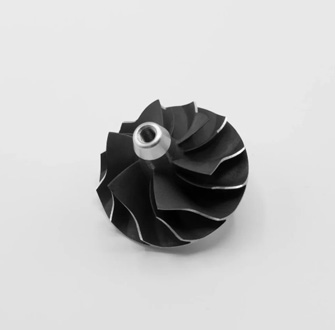

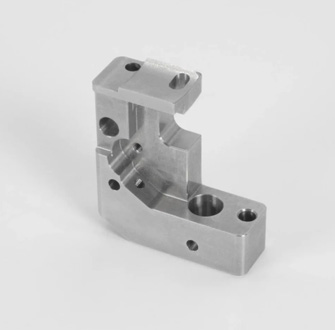

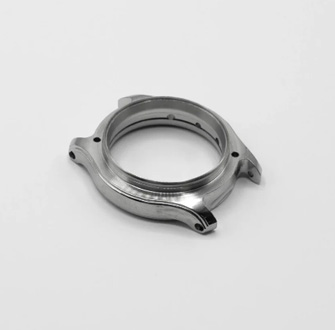

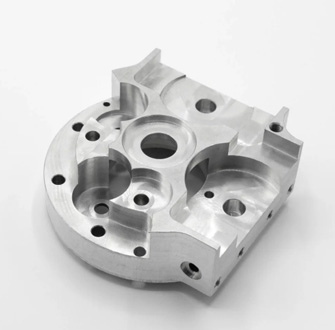

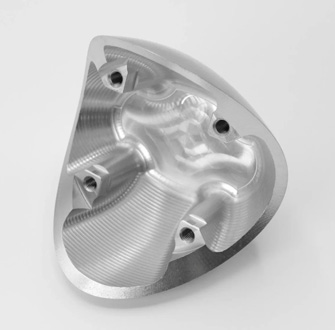

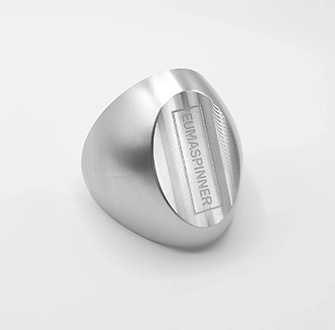

The EUMAINNER UB series is a new milestone with a closed configuration covering the widest range of machining requirements. The high-performance torque motor spindle with speed range of 50-15000 rpm, power 34 kW and max. torque 149 Nm, swing B head and C-axis with torque motors and encoders, linear scales in 3, 4 or 5 axes version as standard. The features that make the machines of the series the ideal machining centers for high quality milling performance and allow the complete production of complex workpieces with excellent surface quality.

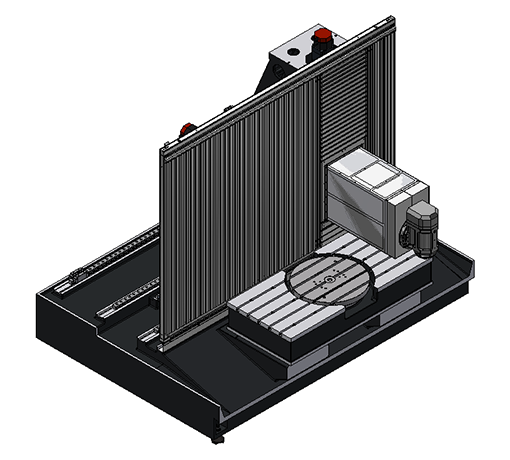

The X, Y, and Z three-axis fully movable column-type high rigidity and high strength heavy cutting dense cast iron structure. All axis lines are fully supported, with excellent rigidity, ensuring accuracy. The X, Y, and Z three axes adopt wide-type linear roller slide rails, with high precision, long service life, and high rapid feed speed , high production efficiency. The worktable surface is wide. Due to the fully movable column structure design, the long worktable is fixed and does not move. The Y-axis stroke is large. The long worktable is embedded with the C-axis.The C-axis is equipped with a standard Heidenhain circular grating scale, ensuring high positioning accuracy.The three axes adopt large-diameter, C1-level precision ball screws, and are equipped with an automatic central lubrication system. This can minimize the thermal deformation and backlash of the screw, ensuring accuracy.
| Specification | unit | UB1300C | UB1800C |
| X-axis travel (column moving left and right) | mm | 1300 | 1800 |
| Y-axis travel (column moving back and forth) | mm | 560 | 900 |
| Z-axis travel (spindle box moving up and down) | mm | 560 | 800 |
| Distance from Spindle nose end to worktable surface(vertical) | mm | 100～660 | 100～900 |
| Distance from spindle center to worktable surface (horizontal) | mm | 435～994 | 435~1235 |
| Distance from spindle center to column guide surface | mm | 600 | 970 |
| Long worktable size (table fixed not moving) | mm | 1300 x 500 | 2000 x 900 |
| Maximum load for long worktable | kg | 1500 | 2000 |
| T-slot dimensions | mm | 14x100x5 | 22x150x5 |
| Spindle taper | HSK-A63 | HSK-A63 | |
| Spindle speed | rpm | 15000 electrical spindle | 12000 electrical spindle |
| Main motor power (S1/S6 40%) | kw | 26/31 | 25.1/33.9 |
| Main motor torque (S1/S6 40%) | Nm | 124/149 | 79.9/107.9 |
| B axis spindle head swing Angle | deg. | -120º～+120º | -120º～+120º |
| B axis spindle head swing minimum division | deg. | 0.001° | 0.001° |
| B axis speed | rpm | 40 | 50 |
| B axis continuous torque | Nm | 415 | 580 |
| B axis max torque | Nm | 750 | 1160 |
| B axis braking torque | Nm | 750(without oil pressure) 4000（40bar oil pressure） | 2400（50bar oil pressure） |
| B axis feed motor power | kw | 6.4 | 4.4kw |
| B axis encoder round grating | HEIDENHAIN | HEIDENHAIN | |
| C-axis rotary table diameter (C-axis) | mm | Φ500 | Φ800 |
| C-axis rotation Angle (C-axis) | deg. | 360 | 360 |
| C-axis rotation speed (C-axis) | rpm | 100 | 80 |
| C-axis transmission method | DD motor | DD motor | |
| C-axis max torque | Nm | 910 | 3600 |
| C-axis rated torque | Nm | 480 | 2000 |
| C-axis CNC rotary table maximum load | kg | 500 | 1800 |
| C-axis encoder round grating | HEIDENHAIN | HEIDENHAIN | |
| Fast feed speed (X/Y/Z) | m/min | 36/36/32 | 24 / 30 / 30 |
| Cutting feed speed (X/Y/Z) | mm/min | 1 ~ 10000 | 1 ~ 10000 |
| X/Y/Z axis feed motor power | kw | 4.4/4.4/4.4 | 7.4/4.4/4.4 |
| X/Y/Z axis feed motor torque | Nm | 36/36/36 | 48/36/36 |
| Tool shank form | HSK-A63 | HSK-A63 | |
| Tool magazine Capacity | pcs | 40 | 40 |
| Maximum tool diameter (adjacent tool/adjacent tool empty) | mm | Φ76 / Φ150 | Φ76 / Φ150 |
| Maximum tool length | mm | 300 | 300 |
| Maximum tool weight | kg | 8 | 8 |
| Tool change time (Tool to Tool) | sec. | 5 | 5 |
| Cutting coolant pump motor power | kw | 0.75 + 0.75 | 0.75 + 0.75 |
| Air pressure requirements | kg/cm2 | 6 | 6 |
| Power supply capacity required | KVA | 70 | 110 |
| Positioning accuracy X/Y/Z axis (German VDI3441) | mm | 0.008/0.006/0.006 | 0.015/0.008/0.008 |
| Positioning accuracy B-axis (swinging head) | sec. | 8” | 8” |
| Positioning accuracy C-axis (Insert rotary table) | sec. | 10” | 10” |
| Repeat positioning accuracy X/Y/Z axis (German VDI3441) | mm | 0.006/0.004/0.004 | 0.008/0.005/0.005 |
| Repeat positioning accuracy B-axis (swinging head) | sec. | 4” | 4” |
| Repeat positioning accuracy C-axis (Insert rotary table) | sec. | 4” | 4” |
| Machine height | mm | 2964 | 3500 |
| Floor area | mm | 2900*2500 | 5650*4300 |
| Machine net weight | kg | 9000 | 20000 |
| Numerical control system | SIEMENS ONE | SIEMENS ONE |
Fully enclosed protective cover
Automatic 40 tool magazine
High-speed electric spindle
XYZ axis PMI/HIWIN linear roller guideway
XYZ axis PMI/HIWIN C1 ultra-high class ball screw
Long worktable with fixed rotary table
B axis swing milling head
B-axis circular encoder (HEIDENHAIN)
C-axis circular encoder (HEIDENHAIN)
X/Y/Z axis grating scale (HEIDENHAIN)
C-axis DD motor rotary table
Electric spindle water cooling system device
B axis water cooling system device
C-axis water cooling system device
Cutting coolant system
Oil-water separator
Automatic centralize lubrication system
Spindle blowing device
Chip flushing device
High power hydraulic system
Chain type chip conveyor and chip cart
Cutting fluid gun and air gun
Working lights
Three colors light
Automatic power cut-off M30
Manual pulse generator
RS232C, 2 USB and Ethernet interfaces
Electrical cabinet air-conditioning
Basic tool box
spindle inner cooler 20/30/50/70bar
Oil mist collector
Renishaw Tool setting device NC4/TS27R
Renishaw Workpiece measuring device RPM40/RPM60
Rotating window
NX post-processer
Central calibration system (including RENISHAW probe OMP60 + standard measuring ball + measurement software)
Heidenhain CNC control system
