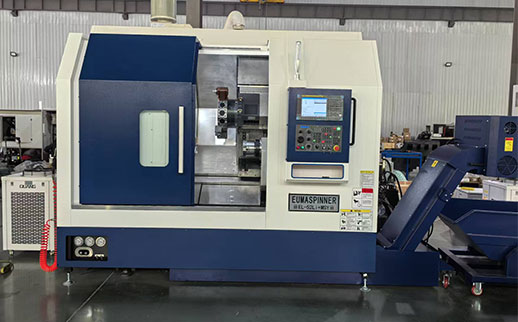

Turn mill lathe+MSY

The turn mill lathe+MSY series has a 30° inclined HT300 gray cast iron bed structure standard with linear guideway.True Y axis interpolated from two X axis by another inclined 30°slider.EUMASPINNER precision electrical main and sub-spindle standard with water cooling device,nose runout below 0.001m, taper from A2-5 to A2-8.Range of working diameter from 220mm to 400mm,working length from 400mm to 850mm.Fast change live tool turret could be BMT or VDI type to handle the cutting and milling.C0/C1 ball screw for ultra high accuracy production and machine body constant temperature to be customized.

Get a Quote download

Description

Overview

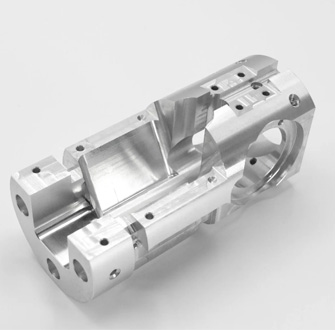

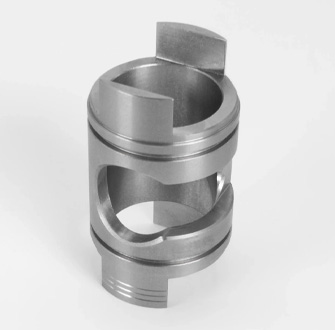

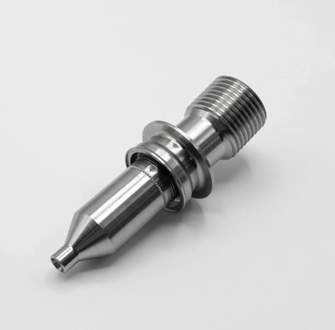

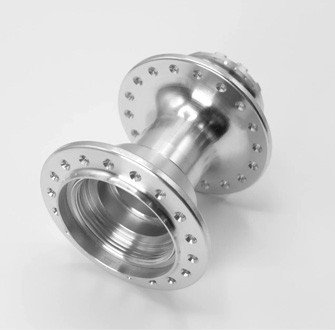

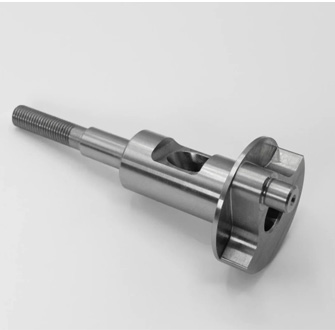

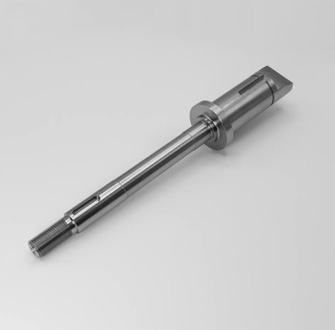

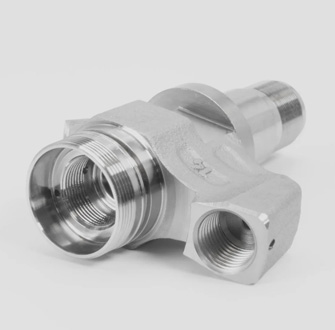

Base on our Turn mill lathe+CY series we develop this Turn mill lathe+MSY structure with sub spindle which the C1 and C2 axes provide positioning resolution up to 0.001 degree.This Y-axis turn mill center is equipped with the controller milling machine for internal and external thread milling of the end face and outer diameter.The use of X/Y/Z linear axis with C axis synchronous movement, 3D engraving milling can be carried out.

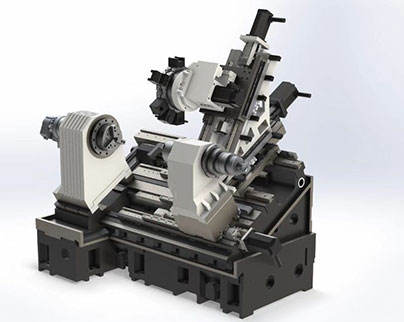

Super Rigid One-Piece Cast Bed

EUMASPINNER's EL line of Turn mill lathe the bed is made of one-piece HT300 gray cast iron, are integrallycast, hardened, and ground. They possess a wide rail span, low center of gravity, large bed swing, and high stiffness while delivering excellent drainage and chip removal performance. The base bed's interior has a heavily distributed strengthening ribs design, effectively eliminating deformation caused by shear and tensile stress.

Meticulous hand-scraping work

The headstock and ballscrew anchoring seat require precise scraping for tighter alignments and tolerances between mating parts, ensuring excellent overall accuracy and machine stability.
Skilled hand scraping creates oil pockets with high and low spot texture patterns, aligning the sliding surfaces between saddle and box guideways for smooth gliding while reducing wear and heat from friction.

Balls crew Drive Mechanism

Oversized AC servo motors are used to deliver powerful thrust for high feed rates and accurate cutting. Large diameter pretensioned precision customized HIWIN/THK ball screws are directly connected to the drive mechanism for nearly backlash free movement. Full travel repeat accuracy reach to 0.003 mm on 1000mm length according to German VDI3441 standard. C0 class ultra high accuracy ball screw is optional.

Linear Guideway

INNA/THK linear guide way design provides low friction coefficient,and minimize the
difference between dynamic and static friction. Therefore,the stick-slip will not occur during sub-micron feeding.

Characteristic

HT300 gray cast iron bed

30°+30° inclined bed structure

Ultra-high accuracy electrical double spindle with water cooling

Rigidity Sauter live power turret

Optional spindle/turret power

Original THK linear guideway

C0/C1/C3 class ball screw customized

Machine constant temperature device

Specification

Speciﬁcation		unit	EL- 42Li+MSY		EL-52Li+MSY		EL-65Li+MSY						EL-75Li+MSY
Control system		-	Siemens 828D		Siemens 828D		Siemens 828D						Siemens 828D
Max. Swing over bed		mm	500		580		650						750
Max. Swing over slide		mm	200		300		330						420
Max. Turning diameter		mm	260		350		400						600
Max. Turning length		mm	400		600	900	640		900	1300		1850	900	1400		1900
Electrical Main/Sub- Spindle (C1/C2 axis)	Nose	-	A2-6	A2-5	A2-6	A2-5	A2-6	A2-5	A2-8		A2-6		A2-8		A2-6
	Hole bar through	mm	66/52	56/42	66/52	56/42	66/52	56/45	86/75		66/52		87/75		66/52
	Chuck size	inch	8	6	8	6	8	6	10		8		10		8
	Max. Speed	rpm	4500	6000	4500	6000	4500	5500	3500		4500		3500		4500
	Encoder indexing	degree	0.001		0.001		0.001		0.001				0.001
	Power (S1/S6 100%)	kw	17/21	11/14	17/21	11/14	17/21	11/14	37.5/47		17/21		37.5/47		17/21
	Torque (S1/S6 100%)	Nm	110/214	42/90	110/214	42/90	110/214	42/90	300/376		110/214		300/376		110/214
Guideway		-	Linear
X-axis travel		mm	195		240		250		250				330
Y-axis travel		mm	±40		±50		±50		±50				±60
Z1-axis travel		mm	430		650	950	660		920	1320		1870	1050	1550		2050
Z2-axis travel		mm	350		580	880	620		880	1280		1830	900	1520		2020
X/Y/Z1/Z2 feeding speed		m/min	30/15/30/15		25/15/25/15		25/15/25/15		25/15/25/15				25/15/25/15
X/Y/Z1/Z2 motor power/torque		kw/Nm	1.8/21		3.0/18		3.0/18		3.0/18				3.0/18
X/Z axis position accuracy (full travel)		mm	0.005		0.005		0.008		0.008 (1000mm)				0.008 (1000mm)
X/Z axis Re-position accuracy (full travel)		mm	0.003		0.003		0.004		0.004 (1000mm)				0.004 (1000mm)
Turret type		-	BMT45 [BMT55]		BMT45 [BMT55]		BMT55		BMT55 [BMT65]				BMT55 [BMT65]
Number of positions		T	12		12		12						12
Cutting tool shank		mm	25x25		25x25		25x25						25x25 [32x32]
Drilling/milling tool collet		-	ER25		ER25		ER32						ER32
Boring hole diameter		mm	25		32		32 [40]						40 [50]
Milling speed		rpm	4600		4600		4600						4600
Rated power		kw	3.55		3.55		3.55						3.55
Rated torque		Nm	22		22		22						22
Coolant power		w	350		350	500	500						750
Water tank		L	200		200		200		230				230
Hydraulic tank capacity		L	20		20		20						20
Total power		kva	38		38		45		65				65
LxWxH (chip conveyor)		mm	2550 x 1800 x 2150		3650 x 2100 x 2180	3950 x 2100 x 2180	3480 x 2150 x 2250		3680 x 2150 x 2250	4560 x 2100 x 2250		4880 x 2150 x 2250	3850 x 2100 x 2250	4560 x 2100 x 2250		4880 x 2100 x 2250
Weight		kg	3750		4600	5100	5000		5600	6200		6800	6750	7350		8450

Standard Configuration

30° one-piece casting slant bed

Power turret 12 positions

Axis linear roller guideway

C3 high precise ball screw

C axis indexing 0.001°

Siemens main motor, Siemens axis motor

Cutting coolant system

Fully enclosed protective cover

Hydraulic system

Double spindle + Y axis, Hydraulic 3-jaw chuck, standard hard jaw

Automatic lubrication device

Water gun

Air gun

Electric cabinet air conditioner

Electronic handwheel

CF card and USB interface

Transformer

Chip conveyor + chip collector

Collet foot switch

Work light

Safety door lock

Work completion indicating light

A set of tools for adjustment

8 tool holders including 2 drive holders

Leveling bolts and pads

Operation and maintenance manual

Siemens 828 system, 10.4" color screen

Optional configuration

C0 Ultra-high precise ball screw

Machine guideway constant temperature

Italy BF gear reducer

Oil-water separator

Oil-mist collector

Parts catcher + conveying belt

Bar feeder

RENISHAW tool re-setter

RENISHAW workpiece measurement

High pressure coolant device

Rotating window

HEIDENHAIN optical grating scale

Mandrel for geometric accuracy test

Collision avoidance dynamic detection system

High pressure 20 bar coolant

Steady rest

Additional warranty
