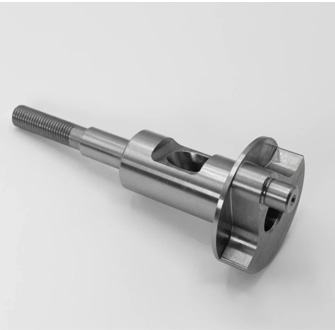

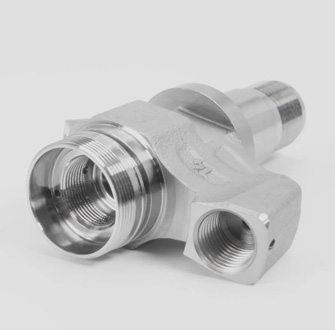

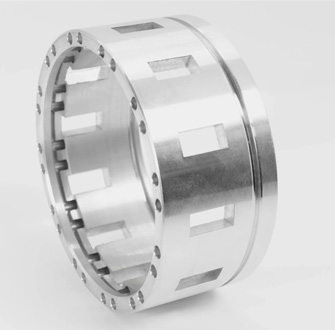

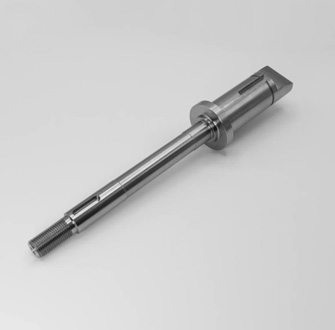

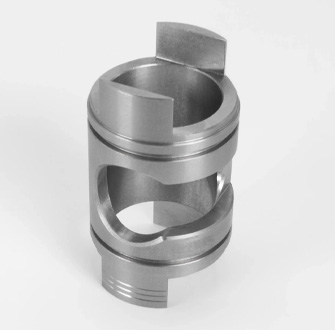

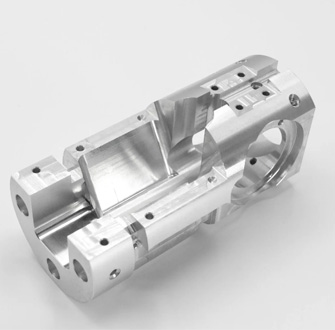

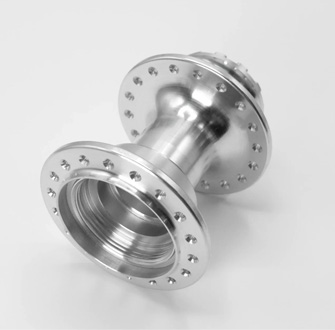

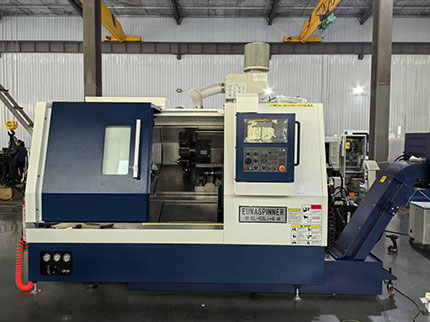

By nearly 20 years experience in slant bed lathe production.EUMASPINNER has amassed technical expertise and experienced engineers. This superb static and dynamic stability EL series turn mill lathe+C was born 20 years ago in 2000s. We developed the optimal machine structure design to provide the perfect balance of brute power stability and precision to build a compact lathe delivering high performance.

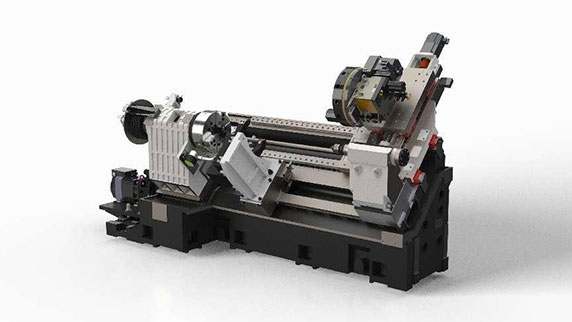

Super Rigid One-Piece Cast Bed

EUMASPINNER's EL+C line of Turn mill lathe bed is made of one-piece HT300 gray cast iron, are integrallycast, hardened, and ground. They possess a wide rail span, low center of gravity, large bed swing, and high stiffness while delivering excellent drainage and chip removal performance. The base bed's interior has a heavily distributed strengthening ribs design, effectively eliminatingdeformation caused by shear and tensile stress.

Meticulous hand-scraping work

The headstock and ballscrew anchoring seat require precise scraping for tighter alignments and tolerances between mating parts, ensuring excellent overall accuracy and machine stability.

Skilled hand scraping creates oil pockets with high and low spot texture patterns, aligning the sliding surfaces between saddle and box guideways for smooth gliding while reducing wear andheat from friction.

Balls crew Drive Mechanism

Oversized AC servo motors are used to deliver powerful thrust for high feed rates and accurate cutting. Large diameter pretensioned precision customized HIWIN/THK ball screws are directly connected to the drive mechanism for nearly backlash free movement. Full travel repeat accuracy reach to 0.003 mm on 1000mm length according to German VDI3441 standard.

Linear Guideway

INNA/THK linear guide way design provides low friction coefficient,and minimize the difference between dynamic and static friction. Therefore,the stick-slip will not occur during sub-micron feeding.

Characteristic

HT300 gray cast iron bed

30° inclined bed structure

In-house precision spindle with circle encoder

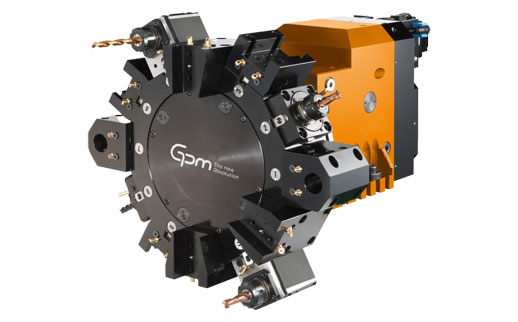

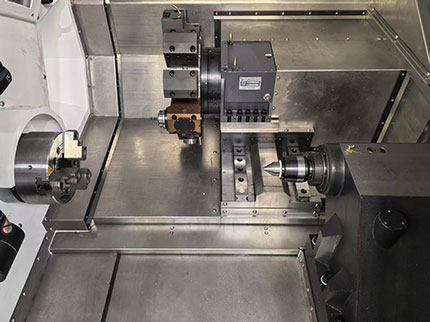

Rigidity Sauter live power turret

Optional spindle/turret power

Programmable or hydraulic tailstock/tailstock

Original THK linear guideway

C0/C1/C3 class ball screw customized

Machine constant temperature device

Specification

Speciﬁcation	unit	EL- 42Li+C	EL-52Li+C			EL-65Li+C				EL-75Li+C			EL-80Li+C
Control system	-	FANUC 0i-TF	FANUC Oi-TF			FANUC Oi-TF				FANUC Oi-TF			FANUC Oi-TF
Max. Swing over bed	mm	500	580			650				750			930
Max. Swing over slide	mm	240	360			410				450			600
Max. Turning diameter	mm	300	400			500				600			750
Max. Turning length	mm	470	680	980	1480	730	1080	1480	2030	1480	1980	2980	2100	2950	3950
Nose	-	A2-6	A2-6	A2-8		A2-6	A2-8 [A2-11]	A2-8 [A2-11]		A2-8 [A2-11]	A2-11 [A2-15]	A2-11 [A2-15]	A2-15
Hole/bar through	mm	66/52	66/52	87/75		66/52	86/75 [105/90]	86/75 [105/90]		86/75 [105/90]	105/90 [132/120]	105/90 [132/120]	132/120
Chuck size	inch	8	8	10		8 [10]	10 [12]	10 [12,15]		10 [12,15]	12 [15]	15 [21]	18 [21]
Max. Speed	rpm	4500	4500	3500		4000	3500 [2000]	3500 [2000]		3500 [2000]	3500 [2000]	2000 [1200]	1200
Encoder indexing	degree	0.001	0.001	0.001		0.001				0.001			0.005
Spindle power (S1/S6 40%)	kw	11/15	11/15	11/15 [15/18.5]		11/15 [15/18.5]	11/15 [15/18.5]	11/15 [15/18.5]		15/18.5	15/18.5	15/18.5	30/37
Spindle torque (S1/S6 40%)	Nm	52/70	52.5/95.5	52.5/95.5 [71.6/95.5]		52.5/95.5 [71.6/118]	105/140 [143/191]	105/140 [143/191]		143/191 [220/250]	143/191 [220/250]	220/250	249/309
Speed ratio	-	1:1.75	1:2.5	1:2.5		1:2.5	1:2.5	1:2.5		1:2.5	1:2.5	1:2.5	1:10 (reducer ratio 1:5, speed ratio:1:2)
Spindle output torque (S1/S6 40%)	Nm	91/122	131/238	131/238 [179/238]		131/238 [179/295]	262.5/350 [357.7/477.5]	262.5/350 [357.7/477.5]		357.7/477.5 [550/625]	357.7/477.5 [550/625]	550/625	2490/3090
Guideway	-	Linear (Op:hard)								Linear (Op:hard)			Linear/Boxway
X-axis travel	mm	185	230	230		280				330			500
Z-axis travel	mm	500	690	990	1490	740	1090	1490	2040	1580	2120	3120	2150	3050	4150
X/Z feeding speed	m/min	30	24	24		30	24			24	24	24	24
X/Z motor power/torque	kw/Nm	1.8/11	1.8/11	1.8/11 [2.5/20]		1.8/11	1.8/11 [2.5/20]			2.5/20			3.0/36
X/Z axis position accuracy (full travel)	mm	0.005	0.005	0.007		0.006	0.008 (1000mm)			0.008 (1000mm)			0.012 (1000mm)
X/Z axis Re-position accuracy (full travel)	mm	0.003	0.003	0.004 (1000mm)		0.004	0.004 (1000mm)			0.004 (1000mm)			0.008 (1000mm)
Turret type and positions	T	BMT45/55 (12 positions)	BMT55 (12 positions)			BMT55 (12 positions)	BMT55/65 (12 positions)			BMT55/65 (12 positions)			BMT65/75 (12 positions)
Cutting tool shank	mm	25X25	25x25	25x25		25x25	25x25 [32x32]	25x25 [32x32]		25x25 [32x32]	25x25 [32x32]	25x25 [32x32]	32x32
Boring tool diameter	mm	32	32	32		40	40 [50]	40 [50]		40 [50]	40 [50]	40 [50]	50
Milling speed	rpm	4000 [6000]	4000 [6000]	4000 [6000]		4000 [6000]				4000 [6000]			4000 [6000]
Rated power	kw	2.7 [4.5]	2.7 [4.5]	2.7 [4.5]		2.7 [4.5]				2.7 [4.5]			4.5
Rated torque	Nm	12 [18]	12 [18]	12 [18]		12 [18]				12 [18]			22
Tailstock moving method	-	Hard/Turret Slide Driving (Op: Linear / Servo driving)								Hard/Turret Slide Driving (Op: Linear / Servo driving)
Tailstock travel	mm	430	660	960	1460	710	1060	1460	2010	1460	1960	2960	2100	2950	3950
Sleeve taper	-	M4#	M5#	M5#		M5#	M5# [M6#]			M5# [M6#]			M6#
Sleeve diameter / travel (hydraulic)	mm	70/100	100	100		100/110 [180/160]				100/110 [180/160]			180/160
Coolant power	w	350	350	500		350	700	700		700			700
Water tank	L	200	200	220		200	220	250		250	270	270	300	380	480
Hydraulic tank capacity	L	20	20	20		20				20			20
Total power	kva	40	45	50		45	50	50		50	50	50	50	50	50
L×W×H (chip conveyor)	mm	2550 x 1800 x 3550	3340 x 1950 x 2050	3550 x 1950 x 2050	4100 x 1950 x 2050	3680 x 2100 x 2150	4280 x 2100 x 2150	4580 x 2100 x 2150	4880 x 2100 x 2150	4560 x 2310 x 2370	4880 x 2310 x 2370	5880 x 2310 x 2370	4880 x 2330 x 2370	5880 x 2330 x 2370	6880 x 2330 x 2370
Weight	kg	3550	4250	4600	5000	5000	52 00	5500	6000	7100	8200	9200	12000	15000	19000

Standard Configuration

30° one-piece casting slant bed

Power turret 12 positions

Axis linear roller guideway

C3 high precise ball screw

C axis indexing 0.001°

FANUC β main motor, FANUC axis motor

Cutting coolant system

Fully enclosed protective cover

Hydraulic system

Hydraulic 3-jaw chuck, standard hard jaw

Automatic lubrication device

Water gun

Air gun

Electric cabinet air conditioner

Electronic handwheel

CF card and USB interface

Transformer

Chip conveyor + chip collector

Collet foot switch

Work light

Safety door lock

Work completion indicating light

A set of tools for adjustment

8 tool holders including 2 drive holders

Leveling bolts and pads

Operation and maintenance manual

FANUC (Siemens 828 system), 10.4" color screen

Optional configuration

C0 Ultra-high precise ball screw

Machine guideway constant temperature

Italy BF gear reducer

Oil-water separator

Oil-mist collector

Parts catcher + conveying belt

Bar feeder

RENISHAW tool re-setter

RENISHAW workpiece measurement

High pressure coolant device

Rotating window

HEIDENHAIN optical grating scale

Mandrel for geometric accuracy test

Collision avoidance dynamic detection system

High pressure 20 bar coolant

Steady rest

Additional warranty
