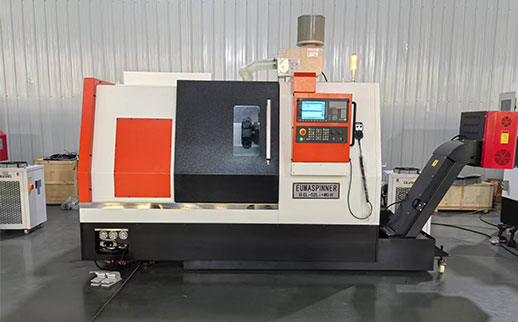

The turn mill lathe+MS series has a 30° inclined HT300 gray cast iron bed structure standard with linear guideway.EUMASPINNER precision electrical main and sub-spindle standard with water cooling device,nose runout below 0.001m, taper from A2-5 to A2-8.Range of working diameter from 320mm to 480mm,working length from 400mm to 850mm.Fast change live tool turret could be BMT or VDI type to handle the cutting and milling.C0/C1 ball screw for ultra high accuracy production and machine body constant temperature to be customized.

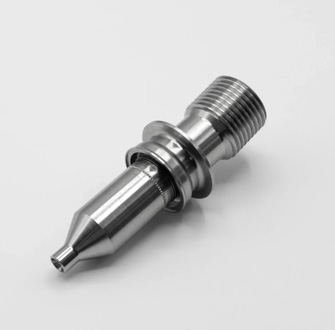

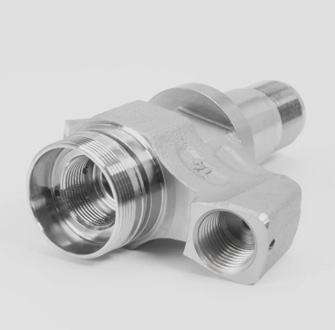

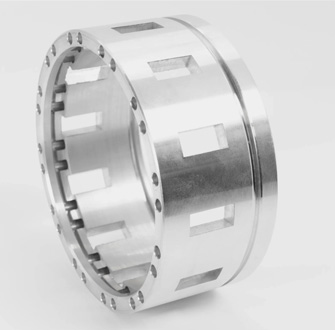

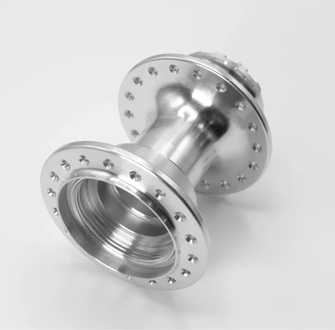

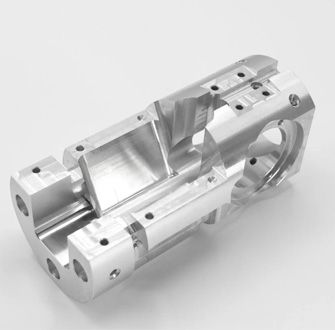

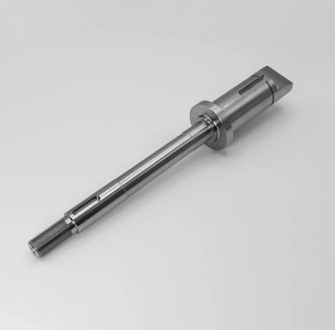

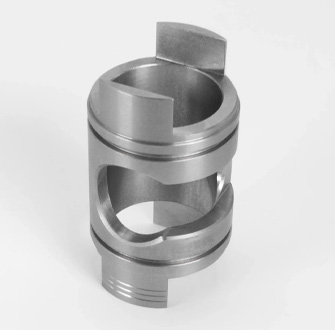

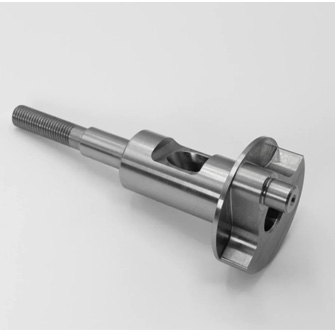

Base on our Turn mill lathe+C series we develop this Turn mill lathe+MS structure with sub spindle which the C1 and C2 axes provide positioning resolution up to 0.001 degree.Accomplish three dimensional contouring,combine round and prismatic machining by harmonized control of the spindles with the X and Z axes. Synchronization between electrical main and sub spindle at any rotation speed can be programmed to perform part transfer for secondary machining, enhancing production efficiency and reducing idle time.

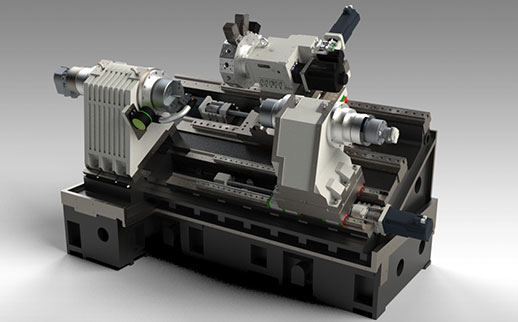

EUMASPINNER's EL line of Turn mill lathe the bed is made of one-piece HT300 gray cast iron, are integrallycast, hardened, and ground. They possess a wide rail span, low center of gravity, large bed swing, and high stiffness while delivering excellent drainage and chip removal performance. The base bed's interior has a heavily distributed strengthening ribs design, effectively eliminating deformation caused by shear and tensile stress.
The headstock and ballscrew anchoring seat require precise scraping for tighter alignments and tolerances between mating parts, ensuring excellent overall accuracy and machine stability.
Skilled hand scraping creates oil pockets with high and low spot texture patterns, aligning the sliding surfaces between saddle and box guideways for smooth gliding while reducing wear and heat from friction.
Oversized AC servo motors are used to deliver powerful thrust for high feed rates and accurate cutting. Large diameter pretensioned precision customized HIWIN/THK ball screws are directly connected to the drive mechanism for nearly backlash free movement. Full travel repeat accuracy reach to 0.003 mm on 1000mm length according to German VDI3441 standard. C0 class ultra high accuracy ball screw is optional.
INNA/THK linear guide way design provides low friction coefficient,and minimize the
difference between dynamic and static friction. Therefore,the stick-slip will not occur during sub-micron feeding.
HT300 gray cast iron bed
30° inclined bed structure
Ultra-high accuracy electrical double spindle with water cooling

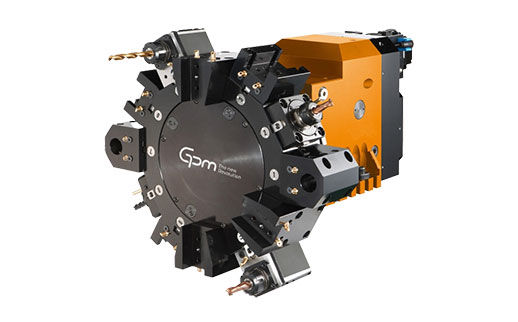

Rigidity Sauter live power turret
Optional spindle/turret power
Original THK linear guideway
C0/C1/C3 class ball screw customized
Machine constant temperature device
| Turn mill lathe+MS | ||||

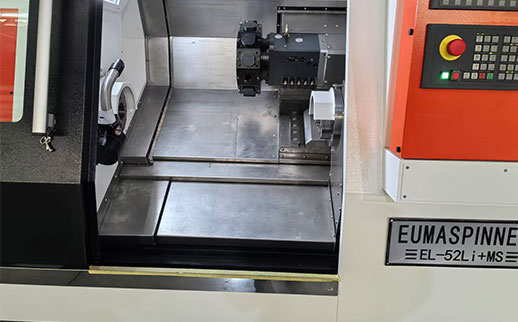

| Model | EL-42Li+MS | EL-52Li+MS | ||
| Control system | Siemens 828D | Siemens 828D | ||
| Working range | ||||
| Max swing over bed | mm | 560 | 600 | |
| Max swing over slide | mm | 340 | 370 | |
| Max turning diameter（Disc/shaft） | mm | 420/320 | 480/350 | |
| Max turning length | mm | 400/600 | 850 | |
| Electrical main/sub-spindle（C1/C2 axis） | ||||
| Nose | A2-6 | A2-5 | A2-8 A2-6 | |
| Hole/bar through | mm | 66/52 | 56/45 | 87/75 66/52 |
| Chuck size | inch | 8 | 6 | 10 8 |
| Max speed | rpm | 4500 | 6000 | 4000 4500 |
| Encoder indexing | deg. | 0.001 | 0.001 | |
| Rate power(S1) | kw | 23 | 11 |  30 23 |
| Rate torque(S1) | Nm | 110 | 42 | 290 110 |
| Spindle nose runout | mm | 0.0015 | 0.001 | 0.002 0.0015 |
| Axis | ||||
| Guideway | Linear | |||
| X travel | mm | 230 | 270 | |
| Z1 travel | mm | 550 | 750 | 1100 |
| Z2 travel | mm | 450 | 650 | 1000 |
| X/Z1/Z2 feeding speed | m/min | 30/24/20 | 30/24/20 | |
| X/Z1/Z2 motor power/torque | kw/Nm | 3.0/18 | 3.55/22 | |
| XZ Position （full travel） | mm | 0.005 | 0.006 | |
| XZ Repeat posision（full travel） | mm | 0.0025 | 0.003 | |
| Power turret | ||||
| Turret type | BMT55(Op:VDI30/40) | BMT65(Op:VDI50) | ||
| Numbers | T | 12 | ||
| Cutting tool shank | mm | 25x25 | 25x25 | |
| Drilling/milling tool collet | ER25 | ER32 | ||
| Boring tool size | mm | 32 | 32 | |
| Milling speed | rpm | 5000 | 5000 | |
| Rate/max power | kw | 4.56/6.28 | 4.56/6.28 | |
| Rate/max torque | Nm | 14.5/81 | 14.5/81 | |
| Others | ||||
| Coolant power | W | 350 | 700 | |
| Water tank | L | 190 | 220 | |
| Hydraulic tank capacity | L | 50 | 50 | |
| Total power | Kva | 50 | 70 | |
| L×W×H（chip conveyor) | mm | 3140*2120*2060 | 3140*2120*2060 | |
| Weight | kg | 5500 | 6200 | |
30°one-piece casting slant bed
Power turret 12 positions
Axis linear roller guideway
C3 high precise ball screw
C axis indexing 0.001°
Electrical spindle motor, Siemens axis motors
Cutting coolant system
Fully enclosed protective cover
Hydraulic system
Hydraulic 3-jaw chuck, standard hard jaw
Automatic lubrication device
Water gun
Air gun
Electric cabinet air conditioner
Electronic handwheel
Ethernet and USB interface
Transformer
Chip conveyor + chip collector
Collet foot switch
Work light
Safety door lock
Work completion indicating light
A set of tools for adjustment
8 tool holders including 2 drive tool holders
Leveling bolts and pads
Operation and maintenance manual
Siemens 828D system
C0 Ultra-high precise ball screw
Machine guideway constant temperature
Oil-water separator
Oil-mist collector
Parts catcher
Bar feeder
RENISHAW tool resetter
RENISHAW workpiece measurement
High pressure coolant device
Rotating window
HEIDENHAIN optical grating scale
Mandrel for geometric accuracy test
Collision Avoidance Dynamic Detection System
Additional warranty
Fanuc 0i-TF(1) system, 10.4" color screen
